SPECIFICATIONS

Brand Name: NONE

High-concerned chemical: None

Model Number: BAC06A

Origin: Mainland China

feature: reaplace of Smarten 6A battery charger

voltage: DC12V/24V

summarize

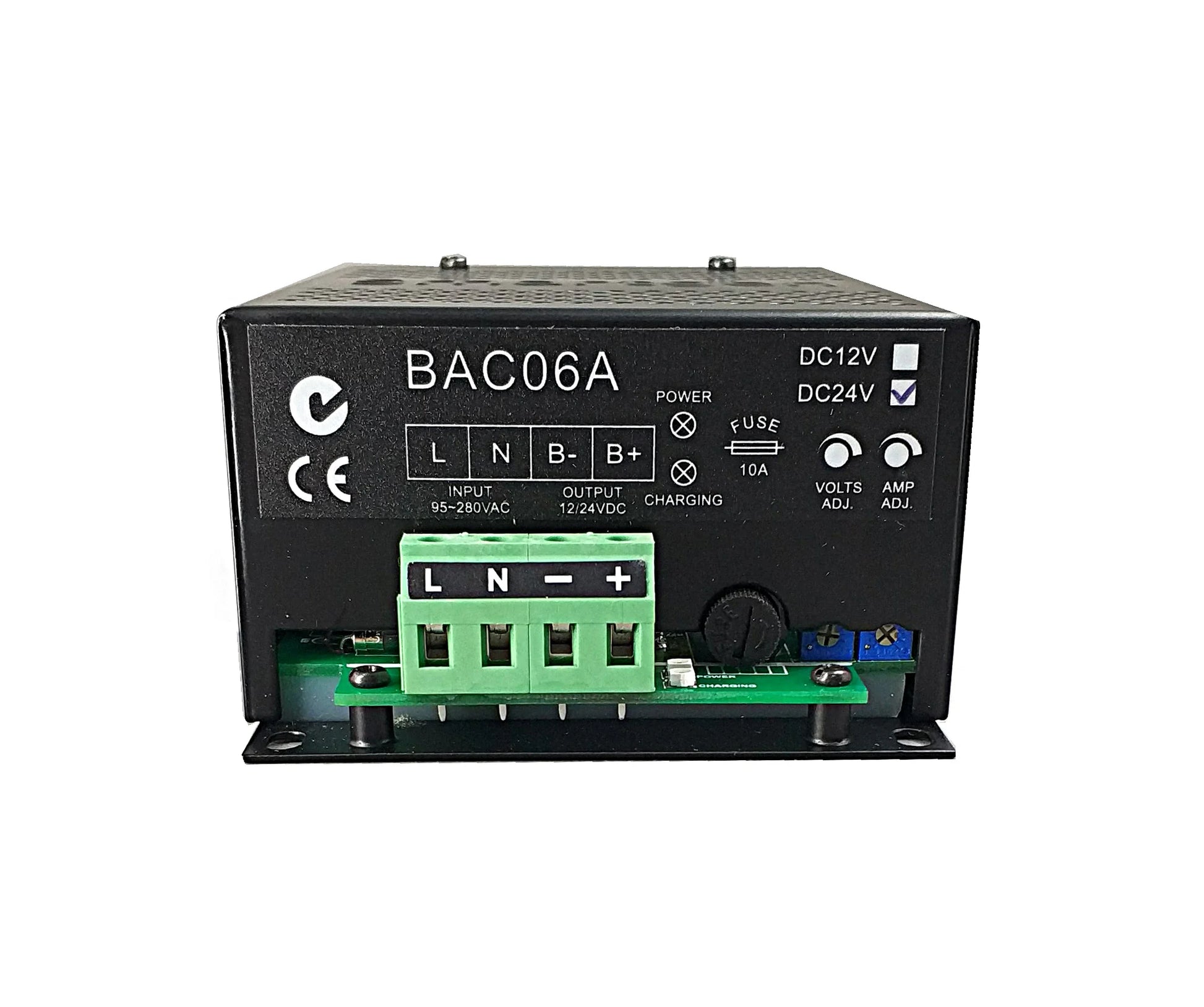

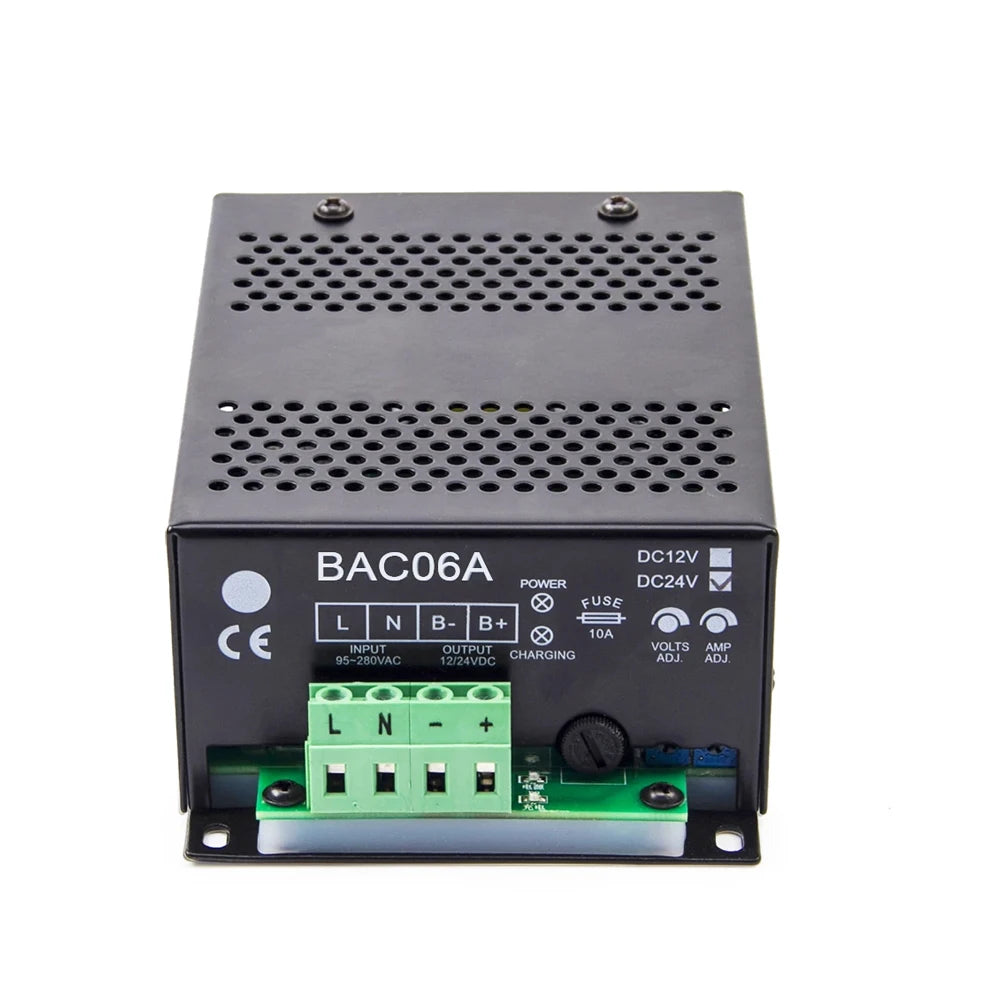

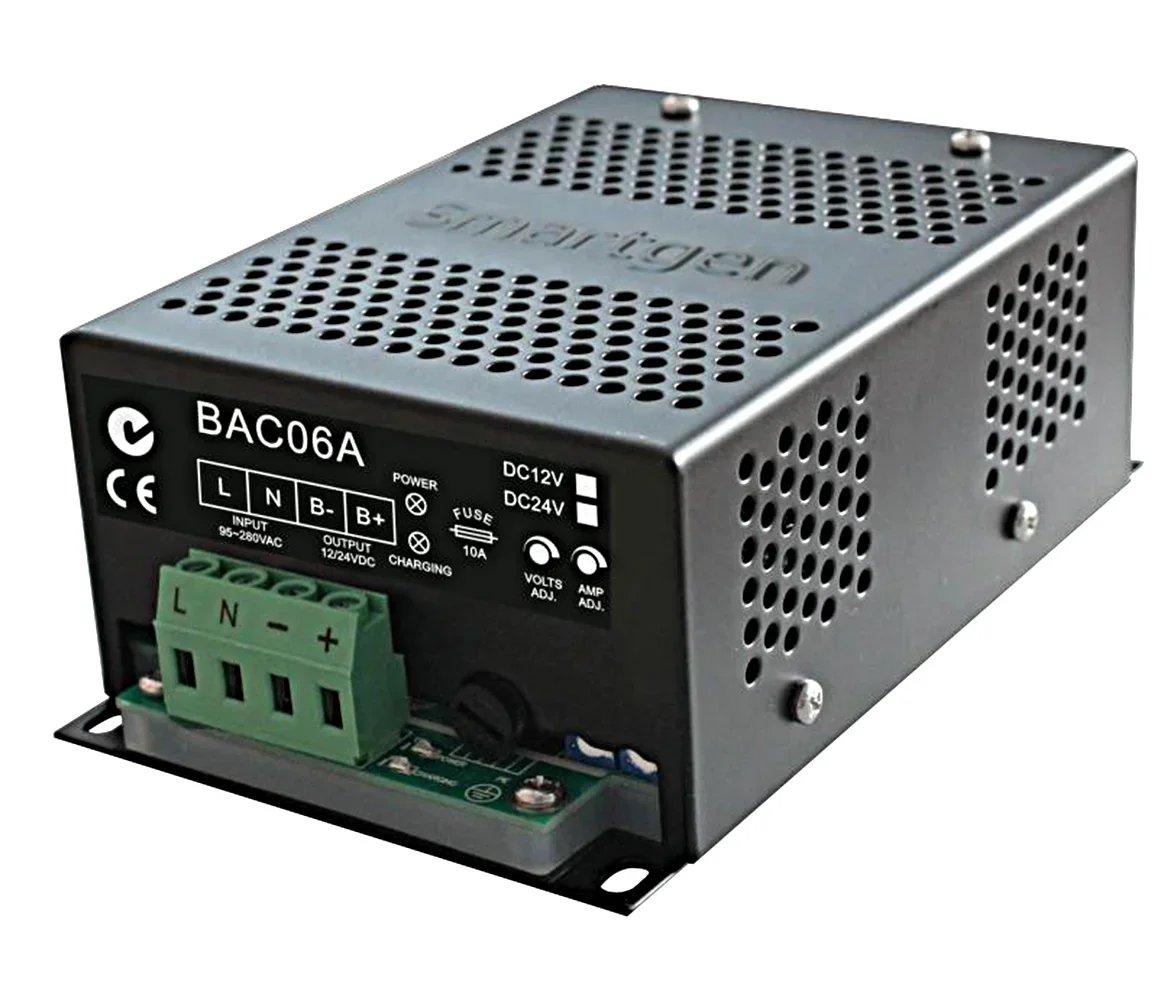

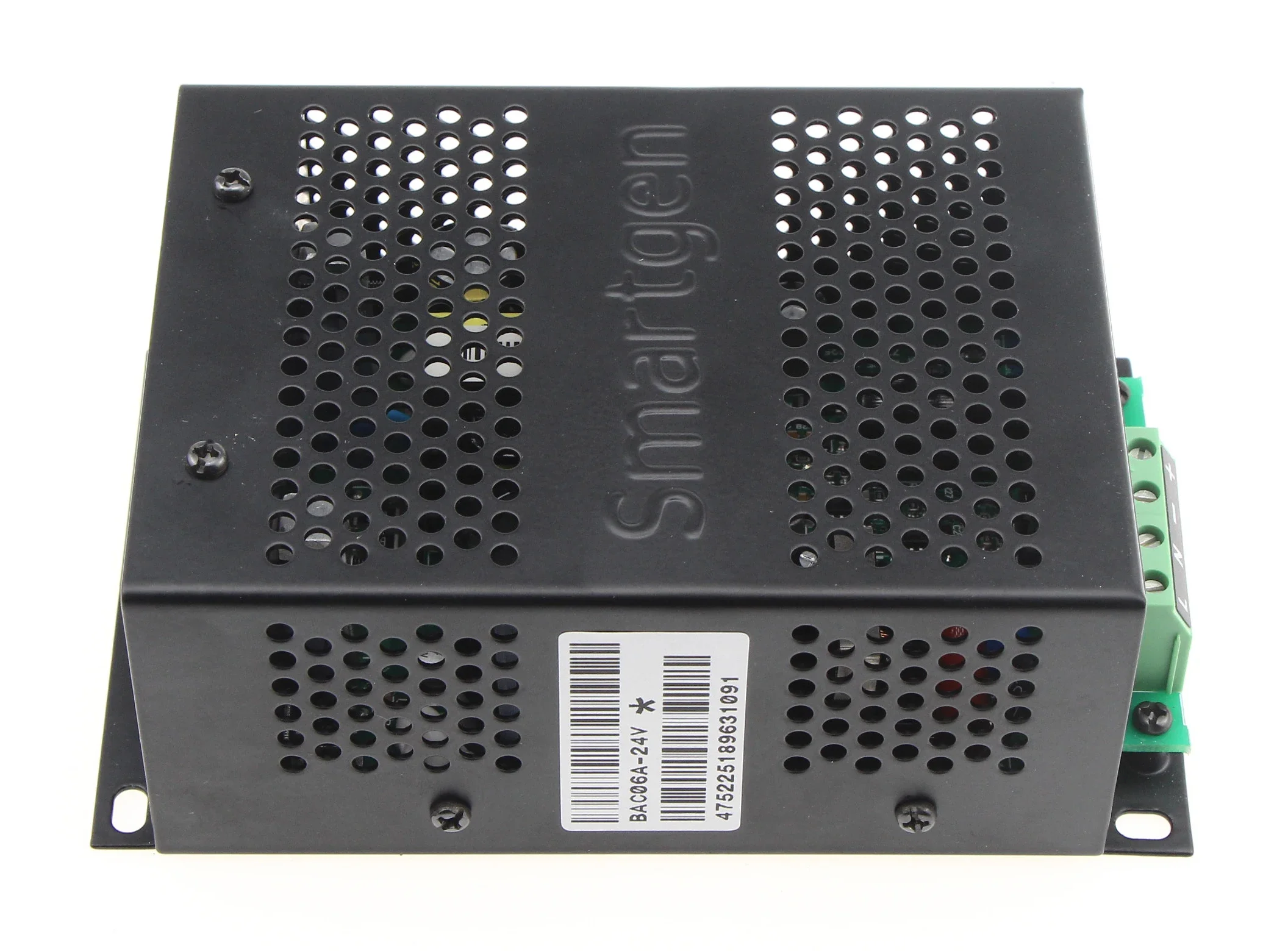

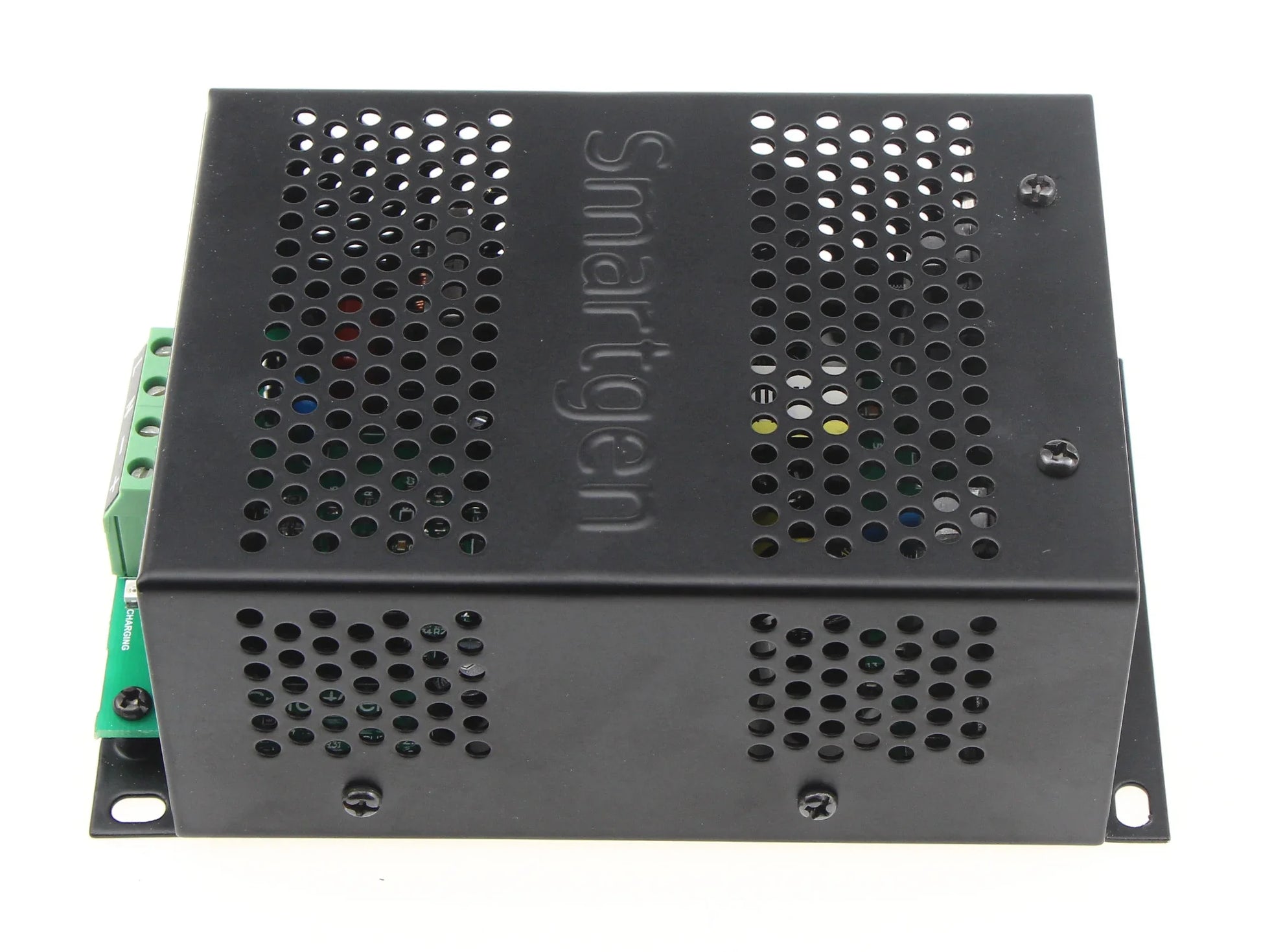

BAC06A battery charger adopts the latest switching power supply devices, specially designed for the charging characteristics of lead-acid batteries used in engine starting, suitable for long-term supplementary charging of lead-acid batteries (floating charge). The maximum output current for a 12V charger is 6A, and the maximum output current for a 24V charger is 3A.

Performance characteristics

Switching power supply structure, wide input AC voltage range, small size, light weight, high efficiency.

Using the two-stage charging method (that is, the first constant current and then the constant voltage mode) automatic charging, fully charging according to the battery charging characteristics, can be prevented Overcharging of the lead-acid battery can maximize the battery life.

With short circuit and reverse protection function.

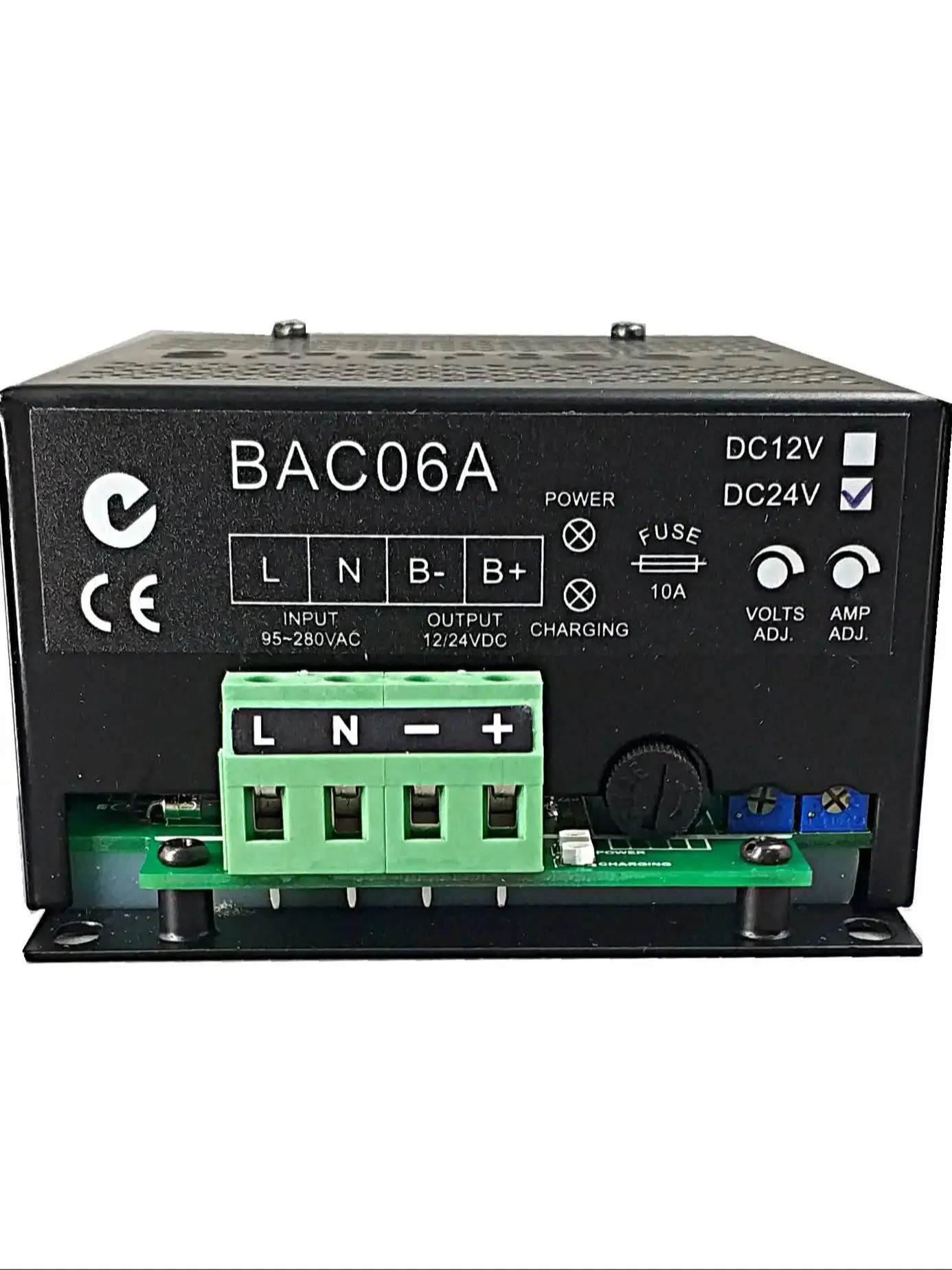

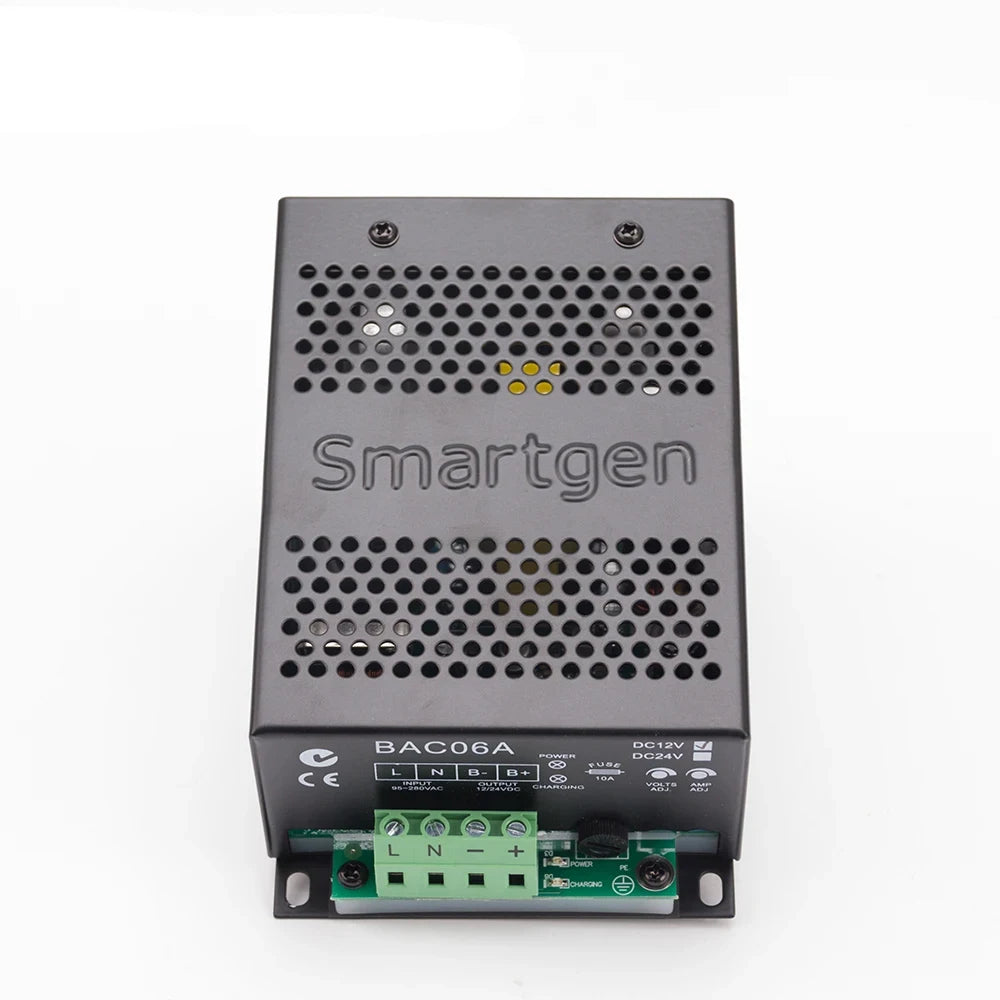

Charging voltage and current value can be adjusted on site by potentiometer.

Status LED display: power indicator, charging indicator.

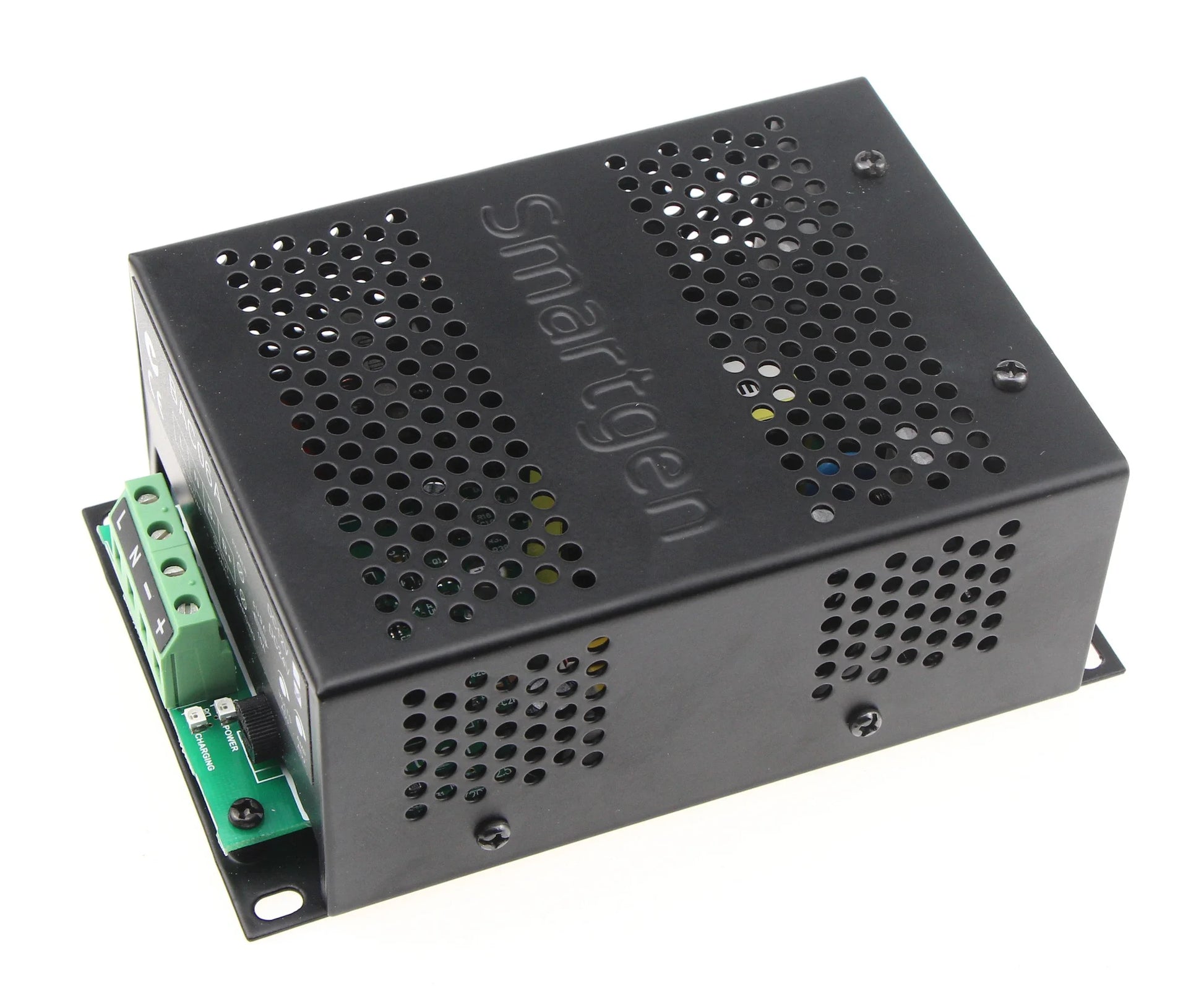

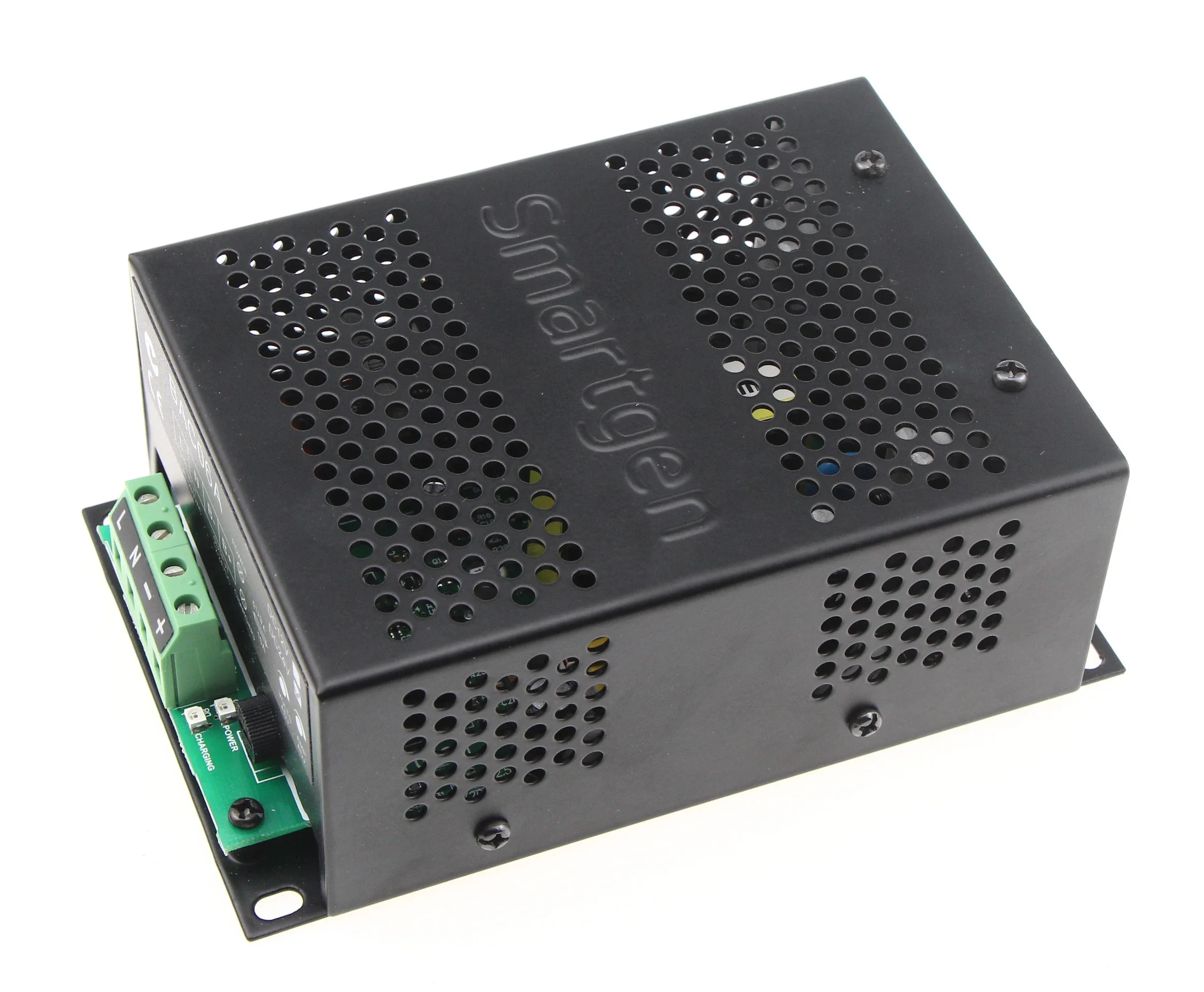

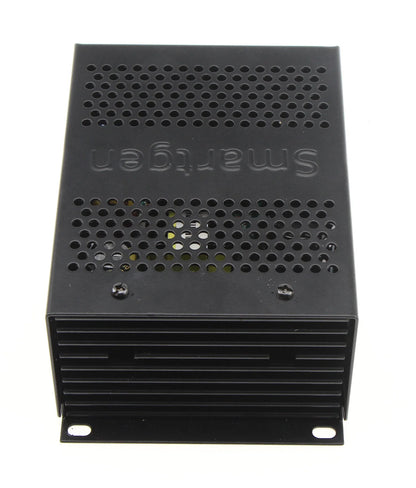

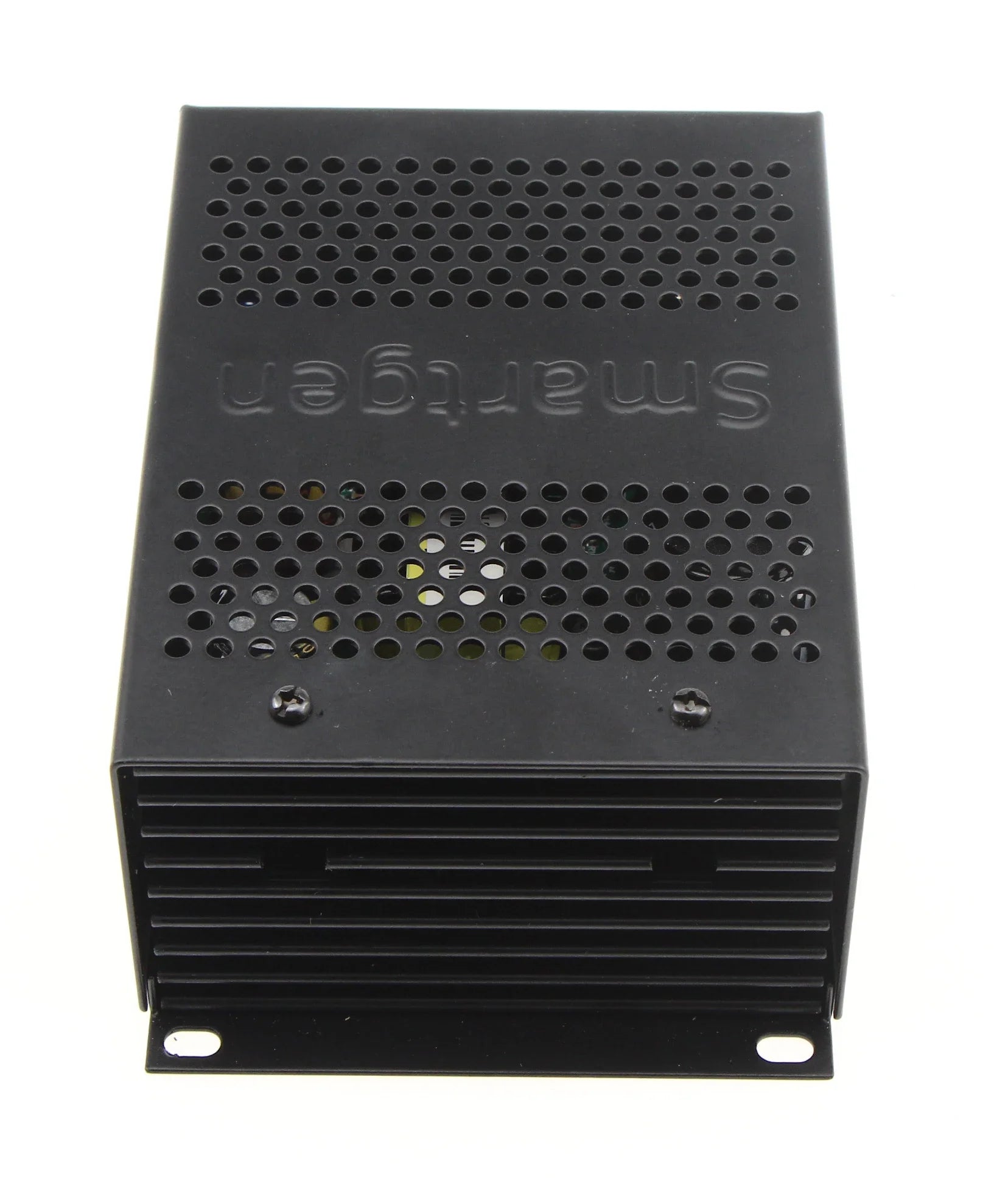

BAC06A adopts horizontal installation mode, easy to install.

specification

Nominal AC input voltage AC (95 ~ 280)V

Maximum AC input voltage AC (90 ~ 305)V

Ac frequency 50Hz/60Hz

Maximum input current 2A

Maximum efficiency 85%

Charging current range 4A ~ 6A, error ±2% 2A ~ 3A, error ±2%

Factory charging current 6A 3A

Maximum output power 85W

Minimum output voltage 7.5V

No-load output voltage 13.8V, error ±1% 27.6V, error ±1%

No-load power consumption <3W

Insulation resistance input and output, input and housing are DC500V 1min condition,

Insulation resistance RL≥500MΩ

Insulation voltage input and output, input and housing are AC1500V 50Hz 1min condition,

Leakage current IL≤3.5mA.

Operating temperature (-30 ~ +55)°C

Storage temperature (-40 ~ +85)°C

Operating Humidity 20%RH ~ 93%RH(no condensation)

Dimensions 143mm×96mm×55mm (length × width × height)

Charging principle

According to the charging characteristics of the battery, the two-stage charging method is adopted, and the charging mode is "constant current type", that is, before the terminal voltage of the battery is lower than the preset value, the charging is constant current charging; When the terminal voltage of the battery is higher than the preset value, the charging current gradually decreases with the increase of the terminal voltage of the battery until it reaches the preset current value and turns into the floating charge mode. At this time, the charging current gradually decreases and the terminal voltage of the battery gradually increases to reach the preset constant voltage value. When the charging current is less than 0.3A, the battery is basically full (the charging indicator is off). After that, the charging current only offsets the self-discharge of the battery, and long-term charging is also harmless to the battery, that is, the charger can maintain the full state of the battery and ensure the service life of the battery.
